Five Bars 4mm Ship Floor 5052 H112 Aluminium Checker Plate

Chongqing Dongchong Aluminum Co., Ltd.

Five Bars 4mm Ship Floor 5052 H112 Aluminium Checker Plate

  • 1
  • 2

Brand Name : Dongchong

Model Number : 5052

Certification : ISO,MTC,MSDS,ROHS,REACH,SGS

Place of Origin : Chongqing ,Dongchong

MOQ : 500-5000kg for different product

Price : negotiable

Payment Terms : TT/LC

Supply Ability : 10000 Tons per month

Delivery Time : 2-3days for stock , 7-10days for normal size .25-30days for customized size

Packaging Details : Wooden pallet , Wooden Box

Grade : 5052

Temper : H112, O,H14,H18,H24,H32 ,H114

Usage : Ship Floor

Standard : GB/T3880,GB/T3190,ASTM-B209

Surface finish : Brush.and Blast.checkered.embossed

Delivery time : 15-20days

Package : Wooden Package

Contact Now

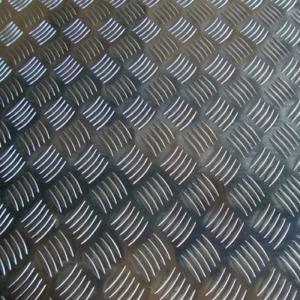

Five Bars 4mm 5052 H112 Aluminium Checkered Sheet For Ship Floor


Production Description


Aluminum Magnesium Alloy pattern plate: to 5052 or 5083 and other 5000 series of aluminum plate as raw material processing, with good milk corrosion, hardness, rust-proof performance. Usually used in special places, such as ships, carriage lights wet environment, such as the high hardness of the aluminum plate, there is a certain load-bearing capacity. FIVE-BAR ALUMINUM ALLOY PATTERN PLATE: five-bar anti-skid aluminum plate has good anti-skid ability, and is widely used in building floor platform design. As the aluminum surface pattern is arranged in parallel according to five concave and convex patterns, and each pattern and other patterns between 60-80 degrees angle, so this pattern has excellent anti-skid performance. The aluminum plate is usually used as anti-skid in China, and has good anti-skid Effect


5052 aluminum plate is AL-Mg alloy aluminum plate, magnesium is the main alloy element in 5052 alloy aluminum plate, is the most widely used one kind of anti-rust aluminum, this alloy has high strength, especially has the anti-fatigue strength: plasticity and corrosion resistance, can not be strengthened by heat treatment, in semi-cold work hardening plastic is good, cold work hardening plastic is low, corrosion resistance, good weldability, poor cutting performance, can be polished. Aluminum-magnesium alloys also contain small amounts of manganese, chromium, beryllium, titanium, etc. . In addition to a small amount of solid solution, the majority of manganese in the alloy forms MNAL6. The effect of chromium in 5052 aluminum plate is similar to that of manganese, which can improve the resistance to stress corrosion cracking, increase the strength of base metal and weld, and reduce the tendency of weld crack, but the content of chromium is not more than 0.35% .


ALLOYCHEMICAL COMPOSITION (%)
SiFeCuMnMgCrNiZnTiZrOtherAl
50520.250.40.10.12.2-2.80.15-0.35__0.1____0.050.15rest
5A06≤0.400.0000.400≤0.10 0.500.8 5.86.8 __0.00010.005 ≤0.200.020.10 __0.050.1rest
50050.30.70.20.20.5-1.10.1__0.25____0.050.15rest
50500.40.70.20.11.1-1.80.1__0.25____0.050.15rest
51540.250.40.10.13.1-3.90.15-0.350.250.20.050.15rest
57540.40.40.10.52.6-3.60.3__0.20.15__0.050.15rest
54540.250.40.10.5-1.02.4-3.00.05-0.20.250.20.050.15rest
51820.20.350.150.2-0.54.0-5.00.10.250.10.050.15rest
50830.40.40.10.4-1.04.0-4.90.05-0.25_0.250.15__0.050.15rest
50860.40.50.10.2-0.73.5-4.50.05-0.250.250.150.050.15rest

Aluminum Checker Sheet Advantages


1. Accurate size, good anti-slip effect,wide range of applications .

2. Strong plasticity, easy forming and excellent processing performance.

3. Embossed aluminum sheet can form a dense and strong oxide film on aluminum surface to prevent the intrusion of oxygen, so it has good corrosion resistance.

4. Good elongation and tensile strength, fully able to meet the normal processing requirements (stamping, stretching), high formability.

5. The surface quality of aluminum checker plate is good, no oil spots, waves, scratches, roller marks, neat trimming, no burrs.

6.The advantages of tread plate are slip resistant, corrosion resistant, hygienic, protective and attractive.


7.Tread plate can be found in parking lots, garages, stairways, step ladders, elevators, loading docks, warehouses, distribution centers, hospitals, factories, ships, floating docks, refrigerator trucks, walk-in freezers, elevators, walkways, handicapped access ramps, truck tool boxes, trailers, and much more.


Diamond Aluminium Plate
Alloy1050/1060/1100/3003/5754/5083/6061/6063/6060/6082/8011
TemperH14,H18,H24,H32 ,H112, H114, T4,T6 ,T651,O
Thickness (mm)0.4mm to 7 mm
Width (mm)Up to 1800mm
Length (mm)Up to 6000mm
StandardGB/T3880-2012
MOQ5ton
Application1)Decorated inside and outside the car /building frame, windows, doors, ceiling, decorating panel and curtain wall
2)Household appliances: refrigerators, microwave ovens, audio equipment, etc.


Technical Property

AlloyTemperThickness(mm)Tensile strength(Mpa)Yeild strength(Mpa)Elongation(%)
Min
5052H111 O>0. 20 — 0. 50170 — 2156512
>0. 50 — 1. 5014
>1.55 — 3.0016
>3. 00 — 6. 0018
>6.00 — 12. 50165-21519
>12. 50 — 50.00
H12>0. 20 — 0. 50210 — 2601604
>0.5-1.55
>1.50 —3.006
>3, 00 — 6. 008
H14>0. 20 — 0. 50230-2801803
>0.50-1.503
>1. 50 -3. 004
>3.00 — 6.004
H16>0. 20 — 0, 50250—3002102
>0. 50 — 1. 503
>1. 5- 3.03
>3.00 — 4. 003
H18>0. 20-0.502702401
>0. 50 — 1. 502
> 1.50 — 3.002
H22 H32>0. 20—0. 50210 — 2601305
>0. 50-1.506
>1.50 — 3.007
>3. 00 — 6. 0010
H24 H34>0. 20 — 0. 50230 — 2801504
>0.50 — 1. 505
>1,50 — 3.006
>3.00 — 6.007
H26 H36>0. 20 — 0.50250 — 3001803
>0. 50 — 1, 504
>1.50—3.005
>3. 00—4. 006
H38 H28>0. 20 — 0, 502702103
>0. 50~1. 53
>1. 50 — 3. 004
H112>6.00—12. 50190807
>12. 50 — 40,0017070
>40, 00 — 80, 0017070




Photos






Company Introduction

Chongqing Dongchong AluminumCo,.Ltd. is a manufacturer of Aluminium products with well-equipped,experienced work team.Our company is equipped with international advanced aluminum production lines. We also own press machine, double-sided milling, cutting machine, recoiler, grinding machine, quenching furnace, tension pre-stretching machine, annealing furnace, smelting furnace machine and so on. We mainly provide aluminum and its alloy sheets, plates, strips, circles, foils, embossed coils, colorful painted aluminum coils, sheet products, etc.With a wide range, good quality, reasonable prices and stylish designs, our products can meet most of all customer needs.Our company established in 2002 and have been in aluminium indurstry for more than 15 years.We have our own brand and customized services are available too.We are an ISO9001:2008 certified company and our QC staff members have ten years' experience in this area. To maintain a strict QC system, we not only utilize precision testing instruments but also continuously train our QA personnel regarding the latest testing principles.We have established long term business relationships with customers in many countries and areas in the world, including the USA, Canada, Brazil, India, Chile, Nigeria, Ghana, Italy, etc. We will continue providing high quality products and better services for our customers, and welcome you to visit our company and establish good business relationships with us.



Equipment Production Parameters By Chongqing Dongchong Aluminum Co.,Ltd
1650mm Slitting machineUncoil(MM)Finished size(MM)Slitting Width(MM)
IDODWidthThicknessIDODAbove 0.5mm≥ 20mm
Φ 400≤ 1800≤ 16000.5-4.5Φ 400≤ 1700(normal)
Φ 500Φ500(normal)
Φ 600
650mm Slitting machineUncoil(MM)Finished size(MM)
IDODWidthThicknessIDODWidth
Φ 400≤ 1780≤ 6000.1-1.5

Φ150
Φ300
Φ400

Φ500

≤ 1700(normal)6-600
Φ 500
Aluminum foil Slitting machineUncoil(mm)Finished size(MM)
IDODWidthThicknessIDODWidth
Φ 76≤ 550≤ 12000.08-0.12Φ76Φ76≤ 550(normal)
1450mm Crosscutting machineUncoil(MM)Finished size(MM)
IDODWidthThicknessIDODWidth
Φ 505≤ 1780≤ 6000.1-1.5

Φ150
Φ300
Φ400

Φ500

≤ 1700(normal)6-600
