5052 H24 1.2mm 3 Bar Embossed Aluminium Checker Plate

Chongqing Dongchong Aluminum Co., Ltd.

5052 H24 1.2mm 3 Bar Embossed Aluminium Checker Plate

  • 1
  • 2

Brand Name : Dongchong

Model Number : 5052

Certification : ISO9001

Place of Origin : Chongqing,Dongchong

MOQ : 500-5000KG for different product

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000tons per month

Delivery Time : 5-20 Days

Packaging Details : Wooden pallet , Wooden Box

Alloy : 5052

Temper : H24,O,H12,H14,H16,H18 ,H24,H22

Color : Gold, silver, rose gold, champagne or customized

Usage : Bus Truck Floor

Sample : free

Package : pallets/wooden box

Contact Now

5052 H24 1.2 mm Small 3 Bar Embossed Pattern Aluminum Checker Sheet for Bus Truck Floor


Product Description


According to the different patterned aluminum alloys, it can be divided into:


1. Aluminum-magnesium alloy pattern plate: It is processed from 5000 series aluminum plates such as 5052 or 5083 as raw materials, and has good corrosion resistance, hardness and rust resistance. Usually used in special places, such as ships and cabin lights in humid environments. This kind of aluminum plate has high hardness and certain load-bearing capacity.


2. Aluminum alloy pattern plate: It is processed with 3003 as the main raw material. This kind of aluminum plate is also called anti-rust aluminum plate. The strength is slightly higher than that of ordinary aluminum alloy pattern plate. It has certain anti-rust performance, but hardness and corrosion resistance. It cannot reach the 5000 series of patterned plates, so the product is used in non-strict rust prevention, such as truck models and cold storage floors.


3. Ordinary aluminum alloy pattern plate: aluminum alloy pattern plate processed with 1060 aluminum plate as the base, which can adapt to the normal environment and is low in price. Usually cold storage, floor, and outer packaging use this patterned aluminum sheet.


Chemical Composition


ALLOYCHEMICAL COMPOSITION (%)
SiFeCuMnMgCrNiZnTiZrOtherAl
10350.350.60.10.050.05____0.10.03__0.03__99.35
11000.950.05-0.20.05______0.1____0.050.1599
10500.250.40.050.050.05____0.050.03__0.03__99.5
10600.250.350.050.030.05____0.050.03__0.03__99.6
10700.20.250.040.030.03____0.040.03__0.03__99.7
10800.150.150.030.020.02____0.030.03__0.02__99.8
10450.30.450.10.050.05____0.050.03__0.03__99.45
11450.150.3-0.50.020.050.05____0.10.03__0.03__99.35
120010.050.05______0.10.05__0.050.1599
12350.650.050.050.05__0.10.06__0.03__99.35
20140.5-1.20.73.9-5.00.4-1.20.2-0.80.10.250.150.050.15rest
2A120.50.53.84.90.3-0.91.2-1.80.10.30.15__0.050.15rest
20170.2-0.80.73.5-4.50.4-1.00.4-0.80.10.250.150.050.15rest
20240.50.53.8-4.90.3-0.91.2-1.80.10.250.150.050.15rest
30030.60.70.05-0.21.0-1.50.10.050.15rest
30040.30.70.251.0-1.50.8-1.3____0.25____0.050.15rest
31040.60.80.05-0.250.8-1.40.8-1.3____0.250.1__0.050.15rest
31050.60.70.30.3-0.80.2-0.80.2__0.40.1__0.050.15rest
50520.250.40.10.12.2-2.80.15-0.35__0.1____0.050.15rest
5A06≤0.400.0000.400≤0.10 0.500.8 5.86.8 __0.00010.005 ≤0.200.020.10 __0.050.1rest
50050.30.70.20.20.5-1.10.1__0.25____0.050.15rest
50500.40.70.20.11.1-1.80.1__0.25____0.050.15rest
51540.250.40.10.13.1-3.90.15-0.350.250.20.050.15rest
57540.40.40.10.52.6-3.60.3__0.20.15__0.050.15rest
54540.250.40.10.5-1.02.4-3.00.05-0.20.250.20.050.15rest
51820.20.350.150.2-0.54.0-5.00.10.250.10.050.15rest
50830.40.40.10.4-1.04.0-4.90.05-0.25_0.250.15__0.050.15rest
50860.40.50.10.2-0.73.5-4.50.05-0.250.250.150.050.15rest
60600.3-0.60.1-0.30.10.10.35-0.60.050.150.10.050.15rest
60610.4-0.80.70.15-0.40.150.8-1.20.04-0.35__0.250.15__0.050.15rest
60630.2-0.60.350.10.10.45-0.90.1__0.10.1__0.050.15rest
70750.40.51.2-2.00.32.1-2.90.18-0.28__5.1-6.10.2__0.050.15rest
80110.5-0.90.6-1.00.15-0.40.20.050.05__0.010.08__0.050.15rest
80790.05~0.30.7~1.30.05________0.1__0.050.15rest



Mechanical properties:


AlloyTemperThickness(mm)Tensile strength(Mpa)Yeild strength(Mpa)Elongation(%)
Min
5052H111 O>0. 20 — 0. 50170 — 2156512
>0. 50 — 1. 5014
>1.55 — 3.0016
>3. 00 — 6. 0018
>6.00 — 12. 50165-21519
>12. 50 — 50.00
H12>0. 20 — 0. 50210 — 2601604
>0.5-1.55
>1.50 —3.006
>3, 00 — 6. 008
H14>0. 20 — 0. 50230-2801803
>0.50-1.503
>1. 50 -3. 004
>3.00 — 6.004
H16>0. 20 — 0, 50250—3002102
>0. 50 — 1. 503
>1. 5- 3.03
>3.00 — 4. 003
H18>0. 20-0.502702401
>0. 50 — 1. 502
> 1.50 — 3.002
H22 H32>0. 20—0. 50210 — 2601305
>0. 50-1.506
>1.50 — 3.007
>3. 00 — 6. 0010
H24 H34>0. 20 — 0. 50230 — 2801504
>0.50 — 1. 505
>1,50 — 3.006
>3.00 — 6.007
H26 H36>0. 20 — 0.50250 — 3001803
>0. 50 — 1, 504
>1.50—3.005
>3. 00—4. 006
H38 H28>0. 20 — 0, 502702103
>0. 50~1. 53
>1. 50 — 3. 004
H112>6.00—12. 50190807
>12. 50 — 40,0017070
>40, 00 — 80, 0017070

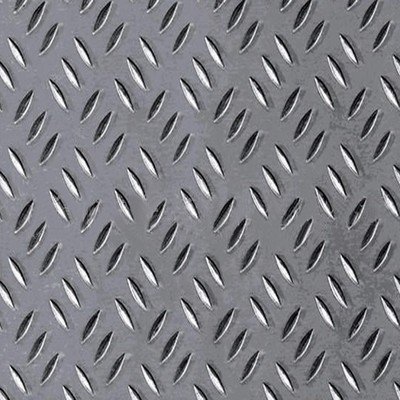

Product Photo




Company Introduction


Chongqing Dongchong Aluminum Co,.Ltd.established in 2002 and have been in aluminium indurstry for more than 17 years.After more than ten years of rapid development, it now has more than 100 employees, more than 15,000 square meters of standard factory buildings and more than 2,000 square meters of office area.


The evelopment concept of corporate Innovation and Practicality Beyond Self-Pursuing Excellence. Dongchong's Mission is While creating value for the society, we should take effective measures to increase employees'income, make them have more time and wealth to control, and constantly improve employees' happiness index. Our business philosophy is Honesty, Cooperation and Win-win .Service Concept is "It is our duty to satisfy all our customers.It's our task for all our customers to praise Dongchong".



Equipment Production Parameters By Chongqing Dongchong Aluminum Co.,Ltd
1650mm Slitting machineUncoil(MM)Finished size(MM)Slitting Width(MM)
IDODWidthThicknessIDODAbove 0.5mm≥ 20mm
Φ 400≤ 1800≤ 16000.5-4.5Φ 400≤ 1700(normal)
Φ 500Φ500(normal)
Φ 600
