Composite HDPE 3003 23 Micron H16 Coated Aluminium Coil

Chongqing Dongchong Aluminum Co., Ltd.

Composite HDPE 3003 23 Micron H16 Coated Aluminium Coil

  • 1
  • 2

Brand Name : Dongchong

Model Number : 3003

Certification : ISO9001

Place of Origin : Chongqing,Dongchong

MOQ : 500-5000KG for different product

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000tons per month

Delivery Time : 2-3days for stock , 7-10days for normal size .25-30days for customized size

Packaging Details : Wooden pallet , Wooden Box

Alloy : 3003

Temper : H16,H24,H28,O,

Surface : HDPE,PE,PVDF

Color : Silver, red ,Yellow ,Green,Blue or as your need

Protection : Film on one side or both side , paper interleave

Usage : Composite Aluminum Plate

Sample : free

Contact Now

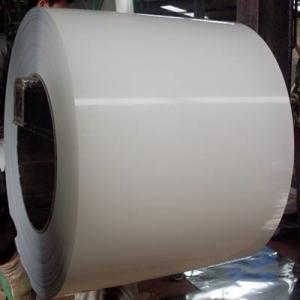

3003 H16 HDPE 23 Micron Light White Coating Aluminium Coil Strip 0.21 mm Thickness for Composite Aluminum Plate


Product Description


3003 aluminum alloy is AL-Mn series alloy, which is the most widely used rust-proof aluminum. It has a high plasticity in the annealed state. The plasticity is good when it is hardened during semi-cold work, the plasticity is low when cold-work hardened, and it has good corrosion resistance. Good weldability and poor machinability. Uses are mainly used for low load parts that require high plasticity and good weldability, working in liquid or gaseous media, such as fuel tanks, gasoline or lubricant pipes, various liquid containers, and other small load parts made by deep drawing. The wire is used to make rivets.


Fluorocarbon spraying Coil
(1) Fluorocarbon spraying coil is divided into two-coating system, three-coating system and four-coating system, and multi-layer coating system is generally suitable.
Two coating systems: 5-10 micron fluorocarbon primer and 20-30 micron fluorocarbon topcoat. The total film thickness should not be less than 35 micron. It can only be used in general environment.
The three-coat system consists of 5-10 micron fluorocarbon primer, 20-30 micron fluorocarbon paint and 10-20 micron fluorocarbon varnish. The total thickness of the film should not be less than 45 micron. It is suitable for severe air pollution, industrial zones and coastal areas with harsh environment.
Four coatings system: Four coatings system has two kinds. One is to add a 20-micron fluorocarbon intermediate paint between the primer and the top coat when using large particle aluminium powder pigments; the other is to add a compact coating of polyamide and polyurethane blends between the primer and the top coat to improve its corrosion resistance and increase the service life of the fluorocarbon aluminium plate. Because the general fluorocarbon paint is a sponge structure, there are stomata, can not prevent the positive and negative ions in the air free penetration to the metal plate base. Therefore, this coating system is more suitable for severe air pollution, industrial zones and coastal areas.
(2) Curing of fluorocarbon baking paint: it should be a few coatings on a few bakes, so that each layer of baking paint is completely cured, forming a good bonding, corrosion resistance, fading resistance, to avoid more coatings and less baking.
(3) When choosing fluorocarbon baking varnish aluminium sheet, attention should be paid to the brand and main technical indicators of fluorocarbon paint, and the content of fluororesin should be more than 70%.

Aluminum alloy coil can be divided into non-painted products and painted products according to their surface treatment methods.
1,Non-painted products
(1) It can be divided into hammer-pattern aluminium plate (irregular pattern), embossing plate (regular pattern) and pre-passivation, anodic alumina surface treatment plate.
(2) Such products do not need to be painted on the surface of sheet metal, and they do not require high surface appearance and low price.
2, Painting products
(1) Classification:
According to the coating process can be divided into: spray plate products and pre-roll coating plate;
According to the type of paint, it can be divided into: polyester, polyurethane, polyamide, modified silicon, epoxy resin, fluorocarbon and so on.
(2) Among various coatings, the main performance difference is the resistance to sunlight ultraviolet rays. The most commonly used coating on the front is fluorocarbon paint (PVDF), which has strong resistance to ultraviolet rays. Polyester or epoxy resin coatings can be selected as protective coatings on the back. In addition, a tearable protective film can be attached to the front.

Specification


TypeAluminium Alloy Coil Strip

Material

1000 Series:1050 1060
TemperH12, H14, H16, H18, H22, H24, H26
SpecificationsThickness 0.006-200mm or as your required Width :6mm-1200mm or as your required.Length:1000-6000mm or as your required
SurfacePE,PVDF
StandardATSTM B209, JIS H4000-2006,GB/T3190-2008,GB/T3880-2006
Application

1) Kitchenware, food and chemical products processing and storage devices;

2) Aircraft fuel tanks, oil pipe, rivets, wire;

3) Cans cover, car body panels, steering plates, stiffeners, brackets and

other components;

4) Manufacturing trucks, tower building, ship, train, furniture, machinery parts,

precision machining with the tubes, rods, shaped, sheet metal.

Trade InformationPackaging Details:Wooden pallet,Wooden box
Delivery Detail:3-5days for stock, 10-15days for normal size,25-30days for customized size
MOQ :500kg-5000kg according to different products
Supply Ability:10000tons per month
Payment terms: TT,LC

ALLOYCHEMICAL COMPOSITION (%)
SiFeCuMnMgCrNiZnTiZrOtherAl
10350.350.60.10.050.05____0.10.03__0.03__99.35
11000.950.05-0.20.05______0.1____0.050.1599
10500.250.40.050.050.05____0.050.03__0.03__99.5
10600.250.350.050.030.05____0.050.03__0.03__99.6
10700.20.250.040.030.03____0.040.03__0.03__99.7
10800.150.150.030.020.02____0.030.03__0.02__99.8
10450.30.450.10.050.05____0.050.03__0.03__99.45
11450.150.3-0.50.020.050.05____0.10.03__0.03__99.35
120010.050.05______0.10.05__0.050.1599
12350.650.050.050.05__0.10.06__0.03__99.35
20140.5-1.20.73.9-5.00.4-1.20.2-0.80.10.250.150.050.15rest
2A120.50.53.84.90.3-0.91.2-1.80.10.30.15__0.050.15rest
20170.2-0.80.73.5-4.50.4-1.00.4-0.80.10.250.150.050.15rest
20240.50.53.8-4.90.3-0.91.2-1.80.10.250.150.050.15rest
30030.60.70.05-0.21.0-1.50.10.050.15rest
30040.30.70.251.0-1.50.8-1.3____0.25____0.050.15rest
31040.60.80.05-0.250.8-1.40.8-1.3____0.250.1__0.050.15rest
31050.60.70.30.3-0.80.2-0.80.2__0.40.1__0.050.15rest

Mechanical properties


AlloyTemperThickness(mm)Tensile strength(Mpa)Yeild strength(Mpa)Elongation(%)
Min
3003O H111>0. 20—0. 5095-1353515
>0. 50 — 1. 5017
>1. 50 — 3. 0020
>3.00 — 6. 0023
>6.0-12.524
>12.5-50
H12>0. 20—0. 50120-160903
>0. 50 — 1. 504
>1.50 — 3.005
>3. 00 — 6. 006
H14>0. 20 — 0. 50145-1951252
>0. 5- 502
>1. 50 — 3. 003
>3. 00—6.04
H16>0. 20 — 0. 50170-2101402
>0.50 — 1.503
>1. 50—4. 003
H18>0. 20 — 0. 501901701
>0. 50—1. 502
>1. 50 — 3. 002
H22>0. 20—0. 50120-160806
>0. 50 — 1.507
>1.50 — 3.008
>3. 0—6.09
H24>0. 20—0. 50145-1951154
>0. 50 — 1.504
>1.50 —3. 005
H26>0. 20 — 0. 50170-2101402
>0.50—1.503
>1.50 — 3. 003
H28>0,20 — 0,501901602
>0. 50L 502
>1. 50—3. 003

Product Photo





Company Introduction


Chongqing Dongchong AluminumCo,.Ltd. is a manufacturer of Aluminium products with well-equipped,experienced work team.Our company is equipped with international advanced aluminum production lines. We also own press machine, double-sided milling, cutting machine, recoiler, grinding machine, quenching furnace, tension pre-stretching machine, annealing furnace, smelting furnace machine and so on.


We mainly provide aluminum and its alloy sheets, plates, strips, circles, foils, embossed coils, colorful painted aluminum coils, sheet products, etc.With a wide range, good quality, reasonable prices and stylish designs, our products can meet most of all customer needs.Our company established in 2002 and have been in aluminium indurstry for more than 15 years.We have our own brand and customized services are available too.We are an ISO9001:2008 certified company and our QC staff members have ten years' experience in this area. To maintain a strict QC system, we not only utilize precision testing instruments but also continuously train our QA personnel regarding the latest testing principles.


We have established long term business relationships with customers in many countries and areas in the world, including the USA, Canada, Brazil, India, Chile, Nigeria, Ghana, Italy, etc. We will continue providing high quality products and better services for our customers, and welcome you to visit our company and establish good business relationships with us.



Equipment Production Parameters By Chongqing Dongchong Aluminum Co.,Ltd
1650mm Slitting machineUncoil(MM)Finished size(MM)Slitting Width(MM)
IDODWidthThicknessIDODAbove 0.5mm≥ 20mm
Φ 400≤ 1800≤ 16000.5-4.5Φ 400≤ 1700(normal)
Φ 500Φ500(normal)
Φ 600
Aluminum foil Slitting machineUncoil(mm)Finished size(MM)
IDODWidthThicknessIDODWidth
Φ 76≤ 550≤ 12000.08-0.12Φ76Φ76≤ 550(normal)
1450mm Crosscutting machineUncoil(MM)Finished size(MM)
IDODWidthThicknessIDODWidth
Φ 505≤ 1780≤ 600
