Gold Anodized H32 2mm 6mm 5052 Aluminium Alloy Sheet

Chongqing Dongchong Aluminum Co., Ltd.

Gold Anodized H32 2mm 6mm 5052 Aluminium Alloy Sheet

  • 1
  • 2

Brand Name : Dongchong

Model Number : 5052

Certification : MSDS,MTC,REACH,ROHS.FDA,SGS,ect

Place of Origin : Chongqing,Dongchong

MOQ : 500-5000KG for different product

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 10000tons per month

Delivery Time : 5-20 Days

Packaging Details : Wooden pallet , Wooden Box

Alloy : 5052

Temper : H 32,O,H 18,H 24,H 34,H 38,H 111,H 112,F,

Color : Gold, silver, rose gold, champagne or customized

Usage : Industrial Components

Sample : free

Size : Decoration

Protection : Film on one side or both side , paper interleave

Contact Now

Gold Anodized 5052 H 32 1.5 mm 2 mm 6 mm Aluminium Alloy Sheet For Decoration

Product Description

According to different surface treatment methods, aluminum alloy coil can be divided into Mirror surface aluminum plate, Brushed aluminum plate, Anodized aluminum plate, PE coated aluminum plate, PVDF coated aluminum plate etc.

After anodizing, the surface of the aluminum can produce a few microns-hundreds of microns of oxide film. Compared with the natural oxide film of aluminum alloy, its corrosion resistance, wear resistance and decorative properties have been significantly improved and improved. In fact, the direct current sulfuric acid anodic oxidation method is the most common application, because it is suitable for aluminum and most Anodizing of aluminum alloy; thicker film, hard and wear-resistant, better corrosion resistance after sealing; film colorless and transparent, strong adsorption capacity, easy to color; lower processing voltage, less power consumption ; The treatment process does not need to change the voltage cycle, which is conducive to continuous production and practical operation automation


Chemical Composition

ALLOY CHEMICAL COMPOSITION (%)
Si Fe Cu Mn Mg Cr Ni Zn Ti Zr Other Al
3003 0.6 0.7 0.05-0.2 1.0-1.5 0.1 0.05 0.15 rest
3004 0.3 0.7 0.25 1.0-1.5 0.8-1.3 __ __ 0.25 __ __ 0.05 0.15 rest
3104 0.6 0.8 0.05-0.25 0.8-1.4 0.8-1.3 __ __ 0.25 0.1 __ 0.05 0.15 rest
3105 0.6 0.7 0.3 0.3-0.8 0.2-0.8 0.2 __ 0.4 0.1 __ 0.05 0.15 rest
5052 0.25 0.4 0.1 0.1 2.2-2.8 0.15-0.35 __ 0.1 __ __ 0.05 0.15 rest
5A06 ≤0.40 0.0000.400 ≤0.10  0.500.8  5.86.8  __ 0.00010.005  ≤0.20 0.020.10  __ 0.05 0.1 rest
5005 0.3 0.7 0.2 0.2 0.5-1.1 0.1 __ 0.25 __ __ 0.05 0.15 rest
5050 0.4 0.7 0.2 0.1 1.1-1.8 0.1 __ 0.25 __ __ 0.05 0.15 rest
5154 0.25 0.4 0.1 0.1 3.1-3.9 0.15-0.35 0.25 0.2 0.05 0.15 rest
5754 0.4 0.4 0.1 0.5 2.6-3.6 0.3 __ 0.2 0.15 __ 0.05 0.15 rest
5454 0.25 0.4 0.1 0.5-1.0 2.4-3.0 0.05-0.2 0.25 0.2 0.05 0.15 rest
5182 0.2 0.35 0.15 0.2-0.5 4.0-5.0 0.1 0.25 0.1 0.05 0.15 rest
5083 0.4 0.4 0.1 0.4-1.0 4.0-4.9 0.05-0.25 _ 0.25 0.15 __ 0.05 0.15 rest
5086 0.4 0.5 0.1 0.2-0.7 3.5-4.5 0.05-0.25 0.25 0.15 0.05 0.15 rest
6060 0.3-0.6 0.1-0.3 0.1 0.1 0.35-0.6 0.05 0.15 0.1 0.05 0.15 rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 __ 0.25 0.15 __ 0.05 0.15 rest
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 __ 0.1 0.1 __ 0.05 0.15 rest

Aluminium Material Grade
1)1000series aluminium /Pure Aluminum/Pure Aluminium:1050,1060,1070,1080,1100,1350,etc
2)2000series aluminium alloy/Hard Aluminum/Hard Aluminium/Aluminum-Copper Alloy/ Aluminium-Copper Alloy:2011,2014,2017,2024,etc
3)3000series aluminium alloy/ Rust-Proof Aluminum/Rust-Proof Aluminium/ Aluminum-Manganese Alloy:3002,3003,3104,3204,3030,etc
4)5000series aluminium alloy/ Rust-Proof Aluminum/Rust-Proof Aluminium /Aluminum-Magnesium Alloy:5005,5025,5052,5040,5054,5056,5083,5152,etc
5)6000series aluminium alloy / Aluminum-Magnesium-Silicon Alloy /Aluminium-Magnesium-Silicon Alloy /:6101,6003,6061,6063,6020,6201,6262,6082,etc
6)7000series aluminium alloy/ Aluminum-Zinc Alloy/ Aluminium-Zinc Alloy:7003,7005,7050,7075,etc
7)8000series aluminium alloy:8011,etc

Mechanical properties:

Alloy Temper Thickness(mm) Tensile strength(Mpa) Yeild strength(Mpa) Elongation(%)
Min
5052 H111 O >0. 20 — 0. 50 170 — 215 65 12
>0. 50 — 1. 50 14
>1.55 — 3.00 16
>3. 00 — 6. 00 18
>6.00 — 12. 50 165-215 19
>12. 50 — 50.00
H12 >0. 20 — 0. 50 210 — 260 160 4
>0.5-1.5 5
>1.50 —3.00 6
>3, 00 — 6. 00 8
H14 >0. 20 — 0. 50 230-280 180 3
>0.50-1.50 3
>1. 50 -3. 00 4
>3.00 — 6.00 4
H16 >0. 20 — 0, 50 250—300 210 2
>0. 50 — 1. 50 3
>1. 5- 3.0 3
>3.00 — 4. 00 3
H18 >0. 20-0.50 270 240 1
>0. 50 — 1. 50 2
> 1.50 — 3.00 2
H22 H32 >0. 20—0. 50 210 — 260 130 5
>0. 50-1.50 6
>1.50 — 3.00 7
>3. 00 — 6. 00 10
H24 H34 >0. 20 — 0. 50 230 — 280 150 4
>0.50 — 1. 50 5
>1,50 — 3.00 6
>3.00 — 6.00 7
H26 H36 >0. 20 — 0.50 250 — 300 180 3
>0. 50 — 1, 50 4
>1.50—3.00 5
>3. 00—4. 00 6
H38 H28 >0. 20 — 0, 50 270 210 3
>0. 50~1. 5 3
>1. 50 — 3. 00 4
H112 >6.00—12. 50 190 80 7
>12. 50 — 40,00 170 70
>40, 00 — 80, 00 170 70

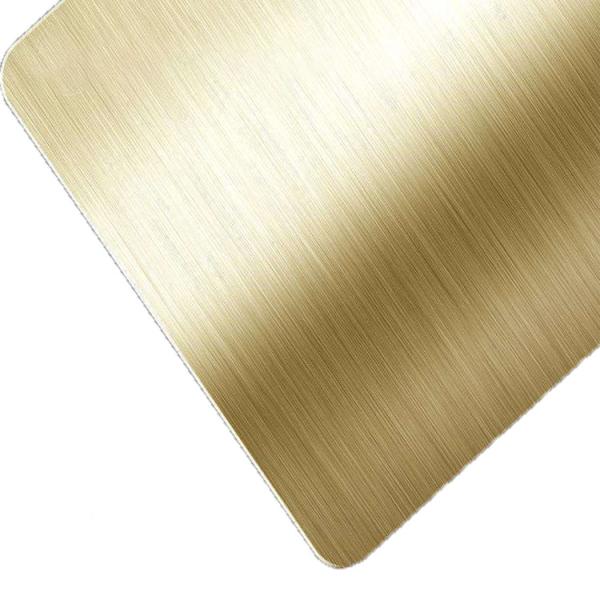

Product Photo

Gold Anodized H32 2mm 6mm 5052 Aluminium Alloy Sheet

Company Introduction

Gold Anodized H32 2mm 6mm 5052 Aluminium Alloy Sheet

Equipment Production Parameters By Chongqing Dongchong Aluminum Co.,Ltd
1650mm Slitting machine Uncoil(MM) Finished size(MM) Slitting Width(MM)
ID OD Width Thickness ID OD Above 0.5mm≥ 20mm
Φ 400 ≤ 1800 ≤ 1600 0.5-4.5 Φ 400 ≤ 1700(normal)
Φ 500 Φ500(normal)
Φ 600
Aluminum foil Slitting machine Uncoil(mm) Finished size(MM)
ID OD Width Thickness ID OD Width
Φ 76 ≤ 550 ≤ 1200 0.08-0.12 Φ76Φ76 ≤ 550(normal)
1450mm Crosscutting machine Uncoil(MM) Finished size(MM)
ID OD Width Thickness ID OD Width
Φ 505 ≤ 1780 ≤ 600 0.1-1.5

Φ150
Φ300
Φ400

Φ500

≤ 1700(normal) 6-600
Φ 605
Annealling Furnace Furnace Temperature Furnace Size
≤440°C 3200*2000*2100
Saw Cutting Thickness(mm) Width (mm) Length (mm)
Size Size Tolerance Size
≤200 ≤2000 ±0.3 ≤3000
